产品展示-变径套系列

DJ-02010|莫氏顶尖套

DJ-02010 莫氏顶尖套

DJ-02010

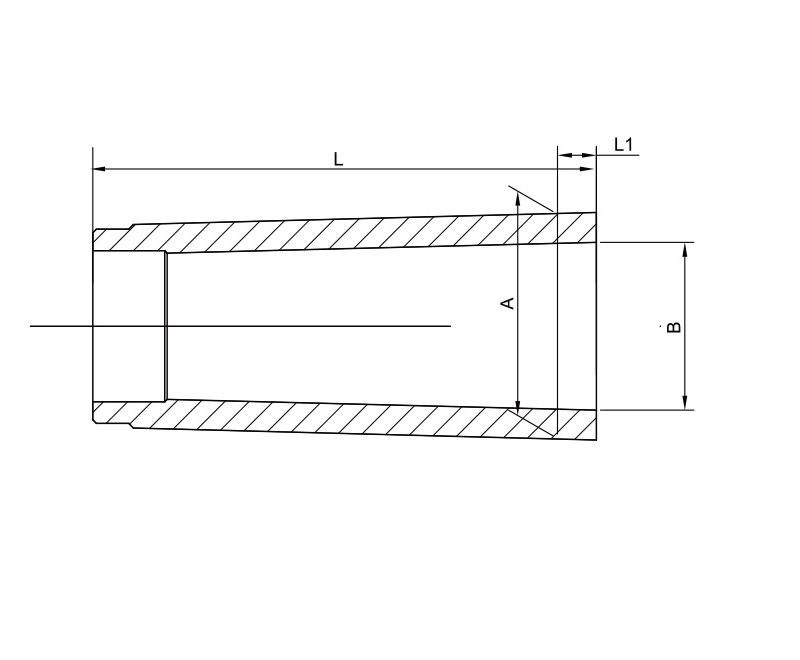

产品信息

型号 D
(φ:mm)
B
(φ:mm)
L
(φ:mm)
L1
(φ:mm)
精度
(mm)
MT2-1 17.780 12.065 45 4 0.003
MT3-1 23.825 12.065 55 4 0.003
MT3-2 23.825 17.780 65 5 0.003
MT4-2 31.267 17.780 70 5 0.003
MT4-3 31.267 23.825 55 5 0.003
MT5-2 44.399 17.780 75 6 0.005
MT5-3 44.399 23.825 80 6 0.005
MT5-4 44.399 17.780 100 6 0.005
MT6-3 63.348 23.825 95 7 0.005
MT6-4 63.348 31.267 105 7 0.005
MT6-5 63.348 44.399 120 8 0.005
80-MT6 80 63.348 150 10 0.005
