CENTER SERIES-MULTIFUNCTION
DJ-08012 VERSA-TURN LIVE-CENTER
产品信息
1. The center adopts the combination of the deep groove ball bearing and the ball thrust bearing
2. It is applicable to the medium speed precise processing of medium-load for CNC lathes.
3. The special umbrella-shaped structure at the head is applicable to process work pieces with central holes and pipes 4. The head is made of alloy tool steel and its hardness after being heat treated could reach HRc60°±2°. It is thus has high steel performance and high wear resistance.
2. It is applicable to the medium speed precise processing of medium-load for CNC lathes.
3. The special umbrella-shaped structure at the head is applicable to process work pieces with central holes and pipes 4. The head is made of alloy tool steel and its hardness after being heat treated could reach HRc60°±2°. It is thus has high steel performance and high wear resistance.

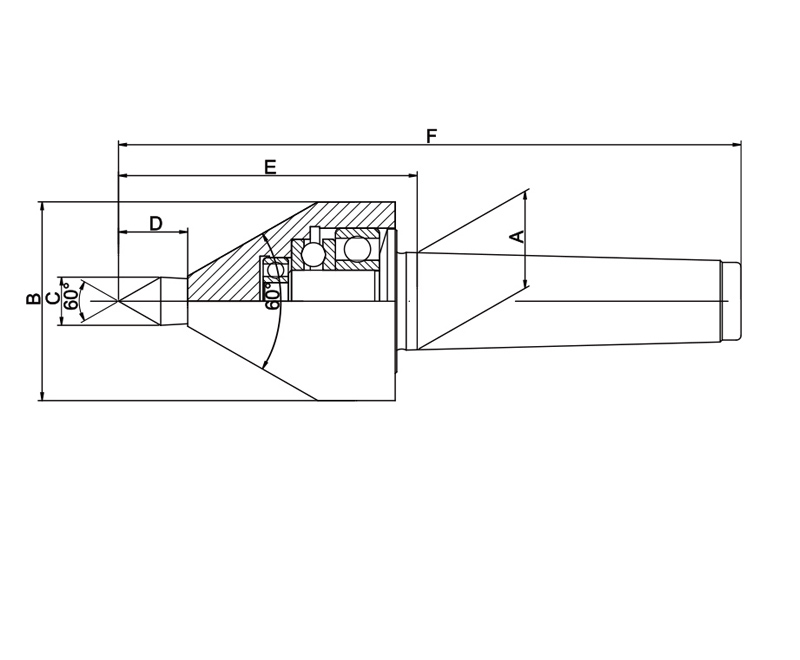

| Model | A (φ:mm) |
B (φ:mm) |
C (φ:mm) |
D (mm) |
E (mm) |
F (mm) |
Max load (kg) |
Max Speed (rpm) |
Accuracy (mm) |
|---|---|---|---|---|---|---|---|---|---|
| MT2 | 17.780 | 48 | 11 | 15 | 72 | 136 | 150 | 3500 | 0.005 |
| MT3 | 23.825 | 54 | 13 | 19 | 81 | 162 | 300 | 3000 | 0.005 |
| MT4 | 31.267 | 64 | 16 | 22 | 95.5 | 198 | 500 | 2500 | 0.005 |
| MT5 | 44.399 | 88 | 20 | 28 | 115.5 | 245 | 800 | 2000 | 0.005 |
