CENTER SERIES-HIGH PERFORMANCE
DJ-06008 HIGH-SPEED LIVE CENTER
产品信息
1. The center adopts the combination of the precise angular contact bearings and needle roller bearings.
2. It is applicable to the high speed precise processing of medium-load for CNC lathes.
3. The prolonged mandrel can improve the cutting performance and reduce vibration.
4. The center is made of alloy tool steel and its hardness after being heat treated could reach HRc60°±2°,It is thus has high steel performance and high wear resistance
5. The anti-dust seal on the front can prevent the cutting fluid and dust from entering into the bearings so as to prolong its service life.
2. It is applicable to the high speed precise processing of medium-load for CNC lathes.
3. The prolonged mandrel can improve the cutting performance and reduce vibration.
4. The center is made of alloy tool steel and its hardness after being heat treated could reach HRc60°±2°,It is thus has high steel performance and high wear resistance
5. The anti-dust seal on the front can prevent the cutting fluid and dust from entering into the bearings so as to prolong its service life.

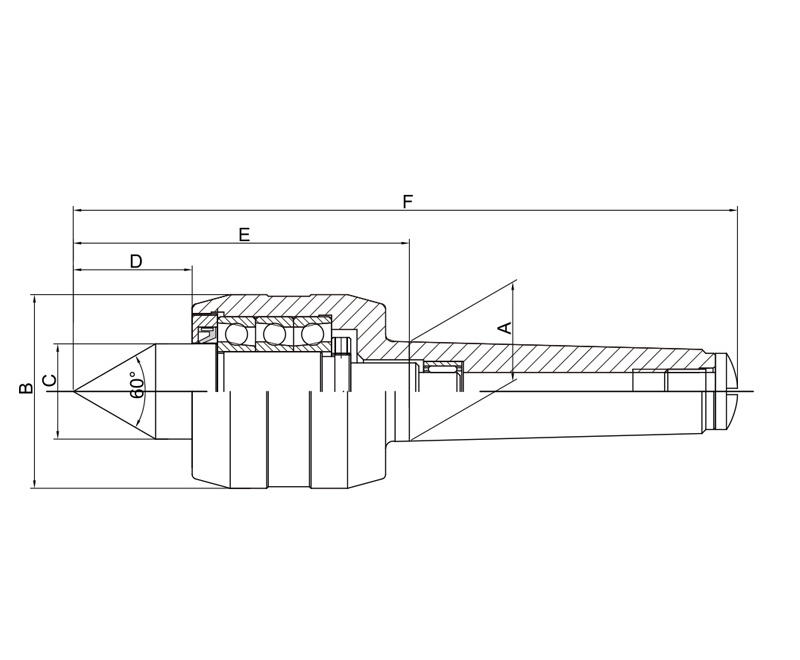

| Model | A (φ:mm) |
B (φ:mm) |
C (φ:mm) |
D (mm) |
E (mm) |
F (mm) |
Max load (kg) |
Max Speed (rpm) |
Accuracy (mm) |
|---|---|---|---|---|---|---|---|---|---|
| MT3 | 23.825 | 48 | 24 | 29.5 | 85 | 166 | 250 | 6000 | 0.005 |
| MT4 | 31.267 | 61 | 30 | 37.5 | 106.5 | 209 | 400 | 5000 | 0.005 |
| MT5 | 44.399 | 72 | 38 | 46 | 124.5 | 254 | 800 | 4000 | 0.005 |
