CENTER SERIES-PRECISION
DJ-01103 Precise Rotary Center With Removable Nut
产品信息
1. The center adopts the combination of the double row deep groove ball bearings, thrust ball bearings and needle roller bearings
2. The prolonged mandrel can effectively improve the cutting performance and reduce vibration.
3. The center is made of alloy tool steel and its hardness after being heat treated could reach HRC60°±29. It is thus has high steel performance and high wear resistance.
4. The main body is equipped with a removable nut which can be pressed out from the front so as to be easily used and disassembled in any situation.
5. The anti-dust seal on the front can prevent the cutting fluid and dust from entering into the bearings so as to prolong its service life
2. The prolonged mandrel can effectively improve the cutting performance and reduce vibration.
3. The center is made of alloy tool steel and its hardness after being heat treated could reach HRC60°±29. It is thus has high steel performance and high wear resistance.
4. The main body is equipped with a removable nut which can be pressed out from the front so as to be easily used and disassembled in any situation.
5. The anti-dust seal on the front can prevent the cutting fluid and dust from entering into the bearings so as to prolong its service life

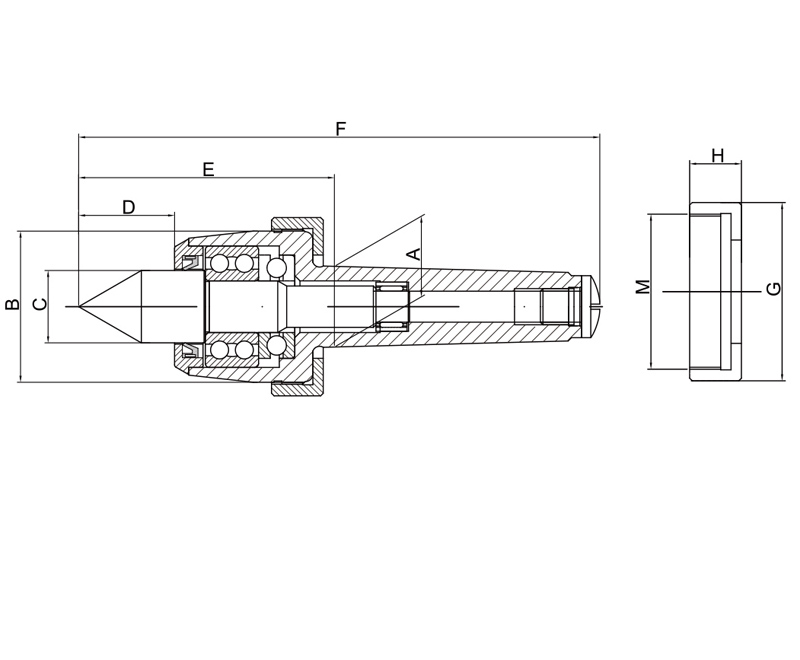

| Model | A (φmm) | B (φmm) | C (φmm) | D (mm) | E (mm) | F (mm) | G (φmm) | H (φmm) | M (φmm) | Max load(kg) | Max Speed(rpm) | Accuracy(mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MT2 | 17.780 | 42 | 20 | 26 | 72 | 136 | 52 | 16 | 44*1.5 | 180 | 5000 | 0.005 |
| MT3 | 23.825 | 52 | 24 | 30 | 90 | 166 | 62 | 18 | 54*1.5 | 300 | 4000 | 0.005 |
| MT4 | 31.267 | 58 | 28 | 35 | 100 | 200 | 69 | 20 | 60*1.5 | 600 | 3500 | 0.005 |
| MT5 | 44.399 | 76 | 38 | 48 | 110 | 252 | 88 | 25 | 78*1.5 | 1200 | 2500 | 0.005 |
