CENTER SERIES-PRECISION
DJ-H06006 CARBIDE PRECISION LIVE CENTER
产品信息
1.This centre is composed of a double row angular contact ball bearing, a thrust ball bearing and a needle bearing
2.It is applicable to medium high speed light load processing for special lathes.
3.The prolonged mandrel can effectively improve the cutting performance and reduce vibration.
4.The mandrel is inlaid with the cemented carbide which is featured in ultra-high hardness and wear resistance, and it can be used for processing the quenching material
5.The skeleton seal ring is used in order to prevent cutting fluid and dust from entering effectively, protect the bearing and extend its service life
2.It is applicable to medium high speed light load processing for special lathes.
3.The prolonged mandrel can effectively improve the cutting performance and reduce vibration.
4.The mandrel is inlaid with the cemented carbide which is featured in ultra-high hardness and wear resistance, and it can be used for processing the quenching material
5.The skeleton seal ring is used in order to prevent cutting fluid and dust from entering effectively, protect the bearing and extend its service life

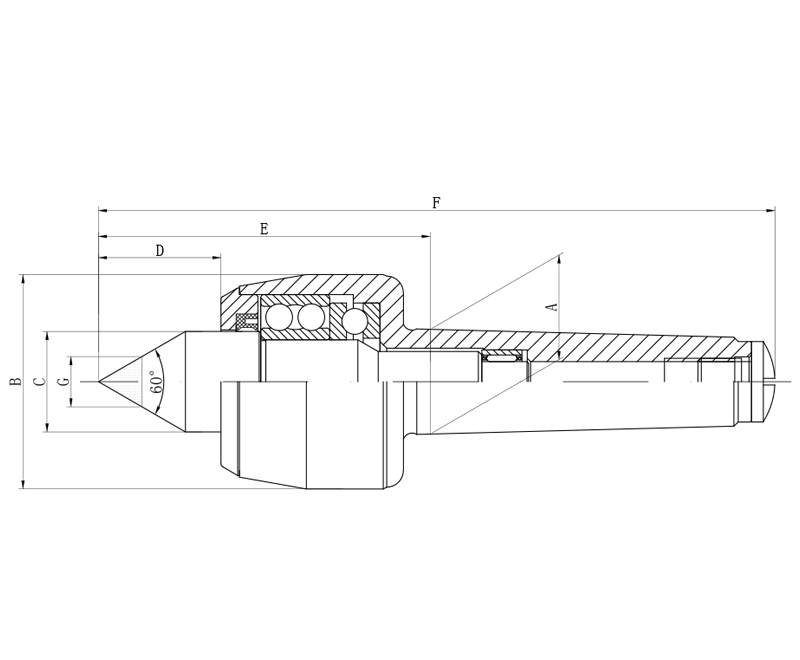

| Model | A (φ:mm) |
B (φ:mm) |
C (φ:mm) |
D (mm) |
E (mm) |
F (mm) |
G (φ:mm) |
Max Load (kg) |
Max Speed (rpm) |
Accuracy (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| MT2 | 17.780 | 47 | 24 | 29.4 | 78 | 143.5 | 12 | 180 | 5000 | 0.005 |
| MT3 | 23.825 | 59 | 26 | 31.6 | 90 | 172 | 15 | 400 | 4000 | 0.005 |
| MT4 | 31.267 | 64 | 30 | 36.6 | 100 | 202 | 18 | 600 | 3500 | 0.005 |
| MT5 | 44.399 | 78 | 38 | 45.3 | 110 | 249 | 24 | 1200 | 2500 | 0.005 |
| MT6 | 63.348 | 106 | 54 | 60 | 152 | 334 | 30 | 1500 | 2000 | 0.005 |
