CENTER SERIES-PRECISION
DJ-H07002 CARBIDE PRECISION LIGHT-DUTY LIVE CENTER
产品信息
1.This centre is composed of a precision angular contact bearing and a needle bearing
2.It is applicable to the medium speed precise processing of medium-load for CNC lathes.
3.The prolonged mandrel can effectively improve the cutting performance and reduce vibration.
4.The mandrel is inlaid with the cemented carbide which is featured in ultra-high hardness and wear resistance, and it can be used for processing the quenching material
5.The anti-dust seal on the front can prevent the cutting fluid and dust from entering into the bearings.
2.It is applicable to the medium speed precise processing of medium-load for CNC lathes.
3.The prolonged mandrel can effectively improve the cutting performance and reduce vibration.
4.The mandrel is inlaid with the cemented carbide which is featured in ultra-high hardness and wear resistance, and it can be used for processing the quenching material
5.The anti-dust seal on the front can prevent the cutting fluid and dust from entering into the bearings.

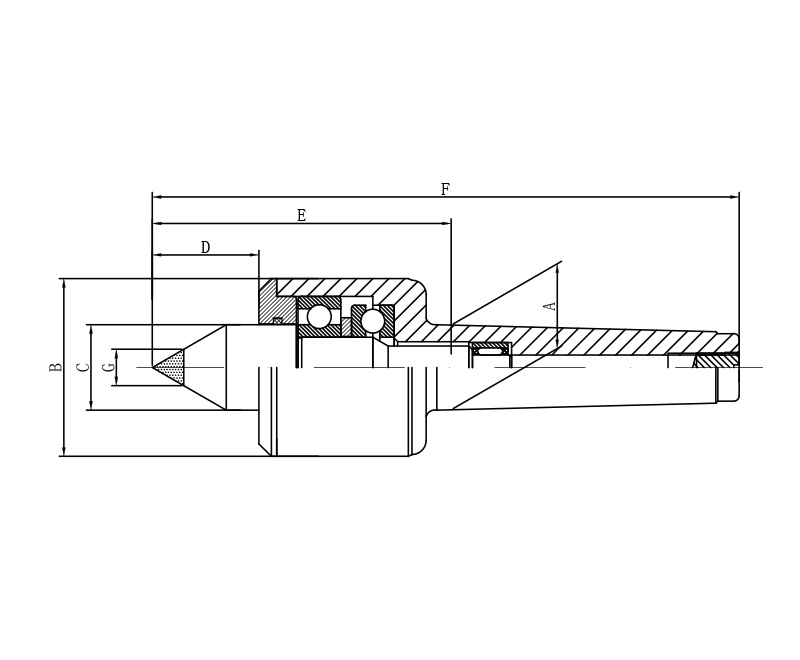

| Model | A (φ:mm) | B (φ:mm) | C (φ:mm) | D (mm) | E (mm) | F (mm) | G (φ:mm) | Max Load (kg) |
Max Speed (rpm) |
Accuracy (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| MT1 | 12.065 | 34 | 14 | 19 | 58 | 111.5 | 8 | 50 | 4000 | 0.005 |
| MT2 | 17.780 | 45 | 20 | 26.5 | 74 | 138 | 8 | 150 | 3500 | 0.005 |
| MT3 | 23.825 | 50 | 24 | 30 | 84 | 165 | 12 | 300 | 3000 | 0.005 |
| MT4 | 31.267 | 62 | 28 | 35.5 | 96 | 198.5 | 15 | 450 | 2500 | 0.005 |
| MT5 | 44.399 | 76 | 38 | 46 | 115.5 | 245 | 18 | 800 | 2000 | 0.005 |
