CENTER SERIES-PRECISION
DJ-S07002 PRECISION LIGHT-DUTY LIVE CENTER(CNC LATHE
产品信息
1.This centre is composed of a precision angular contact bearing and a needle bearing
2.It is applicable to the medium speed precise processing of medium-load for CNC lathes.
3.The prolonged mandrel can effectively improve the cutting performance and reduce vibration.
4.The center is made of alloy tool steel and its hardness after being hardening could reach HRC60°±2°. It is thus has high steel performance and high wear resistance.
5.The centre head is lengthened and its diameter is reduced, so as to reduce the interference to the tool, and it is suitable for machining the small shafts on the end face
6.The anti-dust seal on the front can prevent the cutting fluid and dust from entering into the bearings.
2.It is applicable to the medium speed precise processing of medium-load for CNC lathes.
3.The prolonged mandrel can effectively improve the cutting performance and reduce vibration.
4.The center is made of alloy tool steel and its hardness after being hardening could reach HRC60°±2°. It is thus has high steel performance and high wear resistance.
5.The centre head is lengthened and its diameter is reduced, so as to reduce the interference to the tool, and it is suitable for machining the small shafts on the end face
6.The anti-dust seal on the front can prevent the cutting fluid and dust from entering into the bearings.

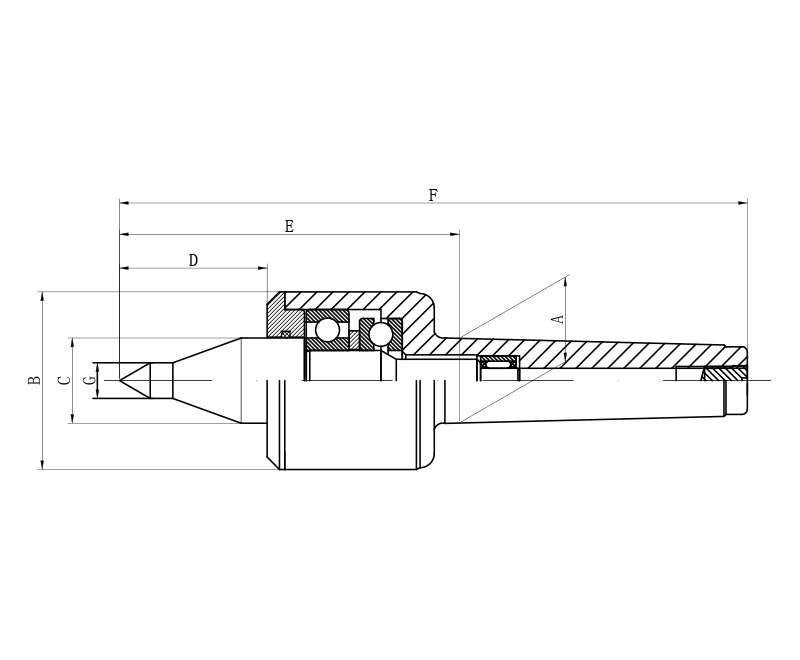

| Model | A (φ:mm) | B (φ:mm) | C (φ:mm) | D (mm) | E (mm) | F (mm) | G (φ:mm) | Max Load (kg) |
Max Speed (rpm) |
Accuracy (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| MT2 | 17.780 | 45 | 20 | 36.5 | 84 | 148 | 8 | 150 | 3500 | 0.005 |
| MT3 | 23.825 | 50 | 24 | 41.5 | 95.5 | 176.5 | 10 | 300 | 3000 | 0.005 |
| MT4 | 31.267 | 62 | 28 | 48.5 | 109 | 212 | 12 | 450 | 2500 | 0.005 |
| MT5 | 44.399 | 76 | 38 | 62 | 132 | 262 | 15 | 800 | 2000 | 0.005 |
