CENTER SERIES-NORMAL
DJ-03002 MEDIUM-DUTY LIVE CENTER
产品信息
1. The center adopts the combination of the deep groove ball bearing and the ball thrust bearing.
2. It is applicable to the medium speed precise processing of medium-load for CNC lathes.
3. The center is made of alloy tool steel and its hardness after being heat treated could reach HRC55°-60°. It is thus has high steel performance and high wear resistance.
4. The anti-dust seal on the front can prevent the cutting fluid and dust from entering into the earings so as to prolong its service life.
2. It is applicable to the medium speed precise processing of medium-load for CNC lathes.
3. The center is made of alloy tool steel and its hardness after being heat treated could reach HRC55°-60°. It is thus has high steel performance and high wear resistance.
4. The anti-dust seal on the front can prevent the cutting fluid and dust from entering into the earings so as to prolong its service life.

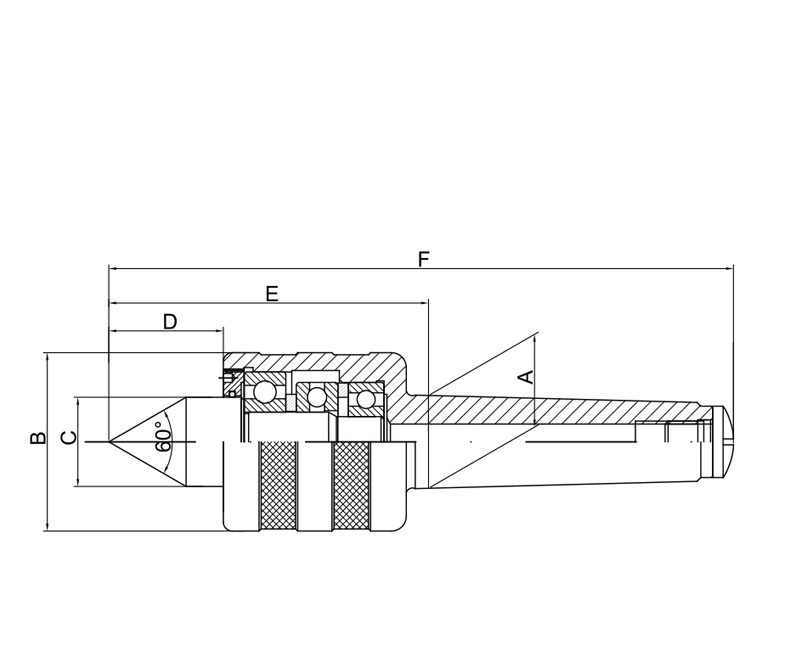

| Model | A (φ:mm) |
B (φ:mm) |
C (φ:mm) |
D (mm) |
E (mm) |
F (mm) |
Max load (kg) |
Max Speed (rpm) |
Accuracy (mm) |
|---|---|---|---|---|---|---|---|---|---|
| MT1 | 12：065 | 34 | 13 | 19 | 63 | 117 | 40 | 4000 | 0.005 |
| MT2 | 17.780 | 45 | 24 | 31 | 87 | 151 | 120 | 3500 | 0.005 |
| MT3 | 23.825 | 52 | 26 | 34 | 94 | 175 | 300 | 3000 | 0.005 |
| MT4 | 31.267 | 60 | 30 | 38.5 | 107 | 210 | 500 | 2500 | 0008 |
| MT5 | 44.399 | 77 | 44 | 50 | 130 | 260 | 800 | 2000 | 0.008 |
| MT6 | 63.348 | 125 | 74 | 74.5 | 188 | 370 | 2000 | 1200 | 0.015 |
