CENTER SERIES-NORMAL
DJ-06002 MEDIUM-LOAD LIVE CENTER
产品信息
1. The center adopts the combination of the deep groove ball bearing and the angular contact bearing.
2. It is applicable to the medium speed precise processing of light load for CNC lathes.
3. The center is made of alloy tool steel and its hardness after being heat treated could reach HRC60°±2°. It is thus has high steel performance and high wear resistance.
2. It is applicable to the medium speed precise processing of light load for CNC lathes.
3. The center is made of alloy tool steel and its hardness after being heat treated could reach HRC60°±2°. It is thus has high steel performance and high wear resistance.

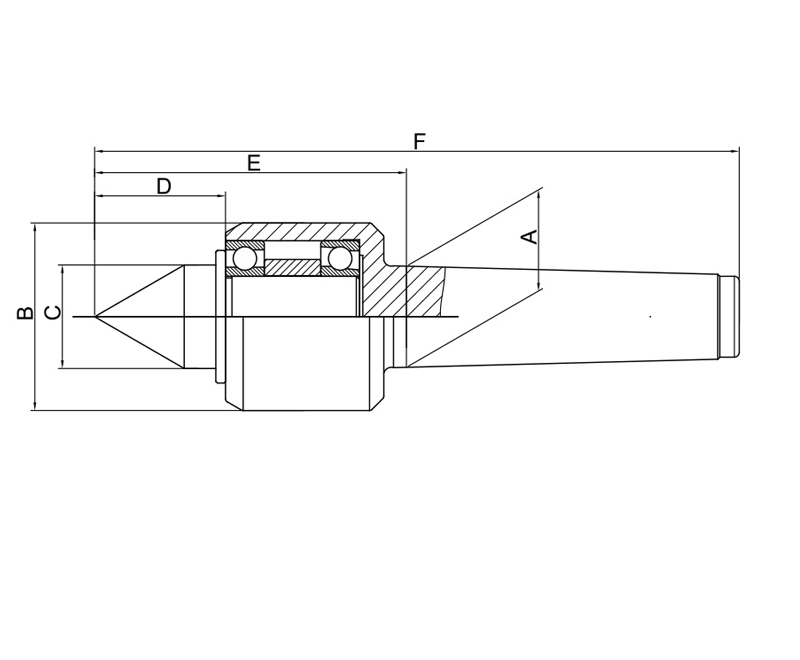

| Model | A (φ:mm) |
B (φ:mm) |
C (φ:mm) |
D (mm) |
E (mm) |
F (mm) |
Max load (kg) |
Max Speed (rpm) |
Accuracy (mm) |
|---|---|---|---|---|---|---|---|---|---|
| MT1 | 12.065 | 34 | 19 | 25 | 60 | 113.5 | 40 | 4000 | 0.005 |
| MT2 | 17.780 | 38 | 20 | 26.5 | 66.5 | 130.5 | 120 | 3500 | 0.005 |
| MT3 | 23.825 | 46 | 25 | 32.5 | 78.5 | 159.5 | 250 | 3000 | 0.005 |
| MT4 | 31.267 | 58 | 32 | 40.5 | 97 | 199.5 | 350 | 3000 | 0.005 |
| MT5 | 44.399 | 64 | 40 | 48 | 113.5 | 243 | 600 | 2500 | 0.005 |
| MT6 | 63.348 | 88 | 50 | 61 | 153 | 335 | 800 | 2000 | 0.01 |
