CENTER SERIES-NORMAL
DJ-06026B VERSA-TURN LIVE CENTER
产品信息
1. The center adopts the combination of deep groove ball bearings
2. It is applicable to medium speed medium-load processing for special lathes.
3. The head is made of alloy tool steel and its hardness after being heat treated could reach HRc60°±2°. It is thus has high steel performance and high wear resistance.
2. It is applicable to medium speed medium-load processing for special lathes.
3. The head is made of alloy tool steel and its hardness after being heat treated could reach HRc60°±2°. It is thus has high steel performance and high wear resistance.

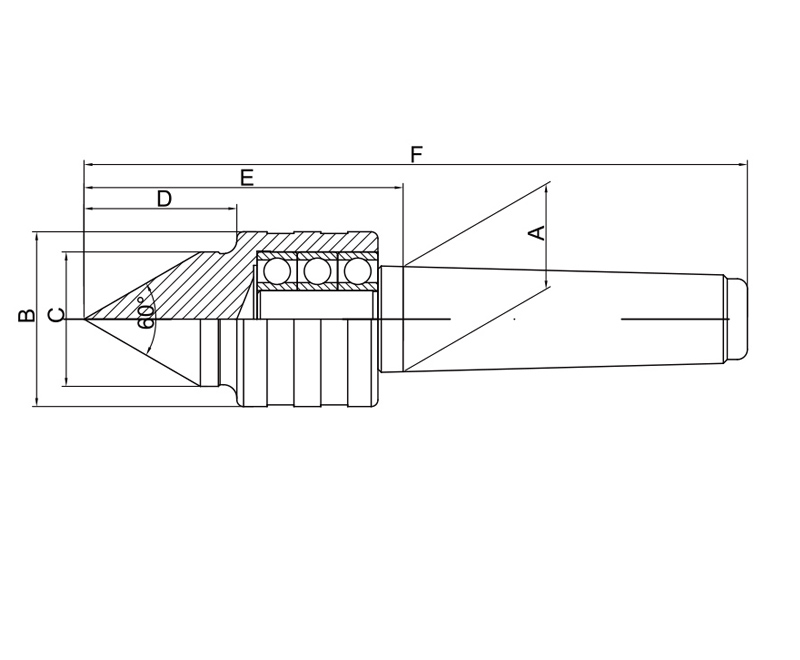

| Model | A (φ:mm) |
B (φ:mm) |
C (φ:mm) |
D (mm) |
E (mm) |
F (mm) |
Max load (kg) |
Max Speed (rpm) |
Accuracy (mm) |
|---|---|---|---|---|---|---|---|---|---|
| MT1 | 12.065 | 32 | 22 | 27 | 56.5 | 110 | 40 | 4000 | 0.005 |
| MT2 | 17.780 | 39 | 28 | 33.5 | 72.5 | 136.5 | 120 | 3500 | 0.005 |
| MT3 | 23.825 | 46 | 32 | 37.5 | 83.5 | 164.5 | 250 | 3000 | 0.005 |
| MT4 | 31.267 | 52 | 40 | 45.5 | 95 | 197.5 | 350 | 2500 | 0.008 |
| MT5 | 44399 | 69 | 50 | 58.5 | 113.5 | 251.5 | 500 | 2000 | 0.008 |
