CENTER SERIES-NORMAL
DJ-H03002 MEDIUM-DUTY LIVE CENTER(EXTENDED)
产品信息
1.This centre is composed of a deep groove ball bearing and a thrust ball bearing
2.It is applicable to the medium speed precise processing of medium-load for CNC lathes.
3.The mandrel is inlaid with the cemented carbide which is featured in ultra-high hardness and wear resistance, and it can be used for processing the quenching material
4.The anti-dust seal on the front can prevent the cutting fluid and dust from entering into the bearings.
2.It is applicable to the medium speed precise processing of medium-load for CNC lathes.
3.The mandrel is inlaid with the cemented carbide which is featured in ultra-high hardness and wear resistance, and it can be used for processing the quenching material
4.The anti-dust seal on the front can prevent the cutting fluid and dust from entering into the bearings.

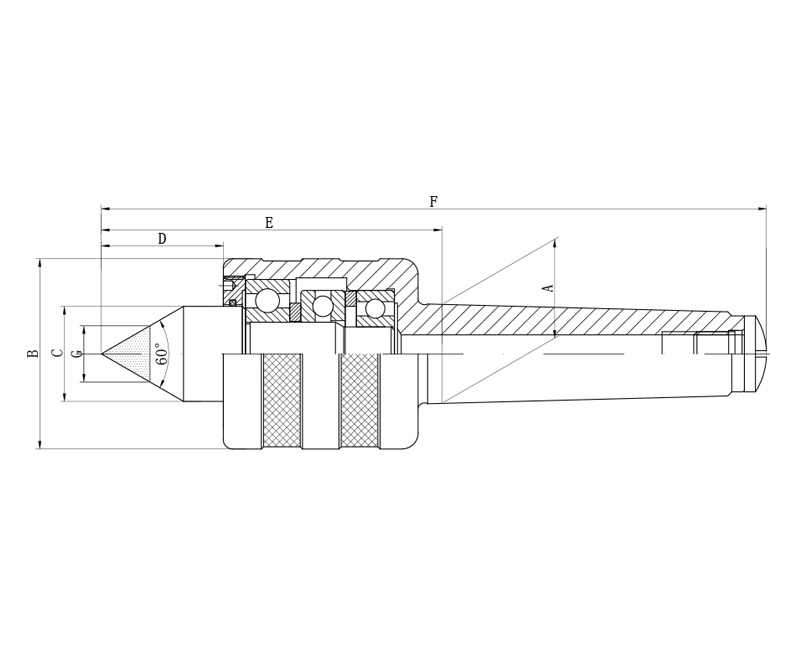

| Model | A (φ:mm) |
B (φ:mm) |
C (φ:mm) |
D (mm) |
E (mm) |
F (mm) |
G (φ:mm) |
Max Load (kg) |
Max Speed (rpm) |
Accuracy (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| MT1 | 12.065 | 34 | 13 | 19 | 63 | 117 | 8 | 40 | 4000 | 0.005 |
| MT2 | 17.780 | 45 | 24 | 31 | 87 | 151 | 12 | 120 | 3500 | 0.005 |
| MT3 | 23.825 | 52 | 26 | 34 | 94 | 175 | 15 | 300 | 3000 | 0.005 |
| MT4 | 31.267 | 60 | 30 | 38.5 | 107 | 210 | 18 | 500 | 2500 | 0008 |
| MT5 | 44.399 | 77 | 44 | 50 | 130 | 260 | 24 | 800 | 2000 | 0.008 |
| MT6 | 63.348 | 125 | 74 | 74.5 | 188 | 370 | 30 | 2000 | 1200 | 0.015 |
