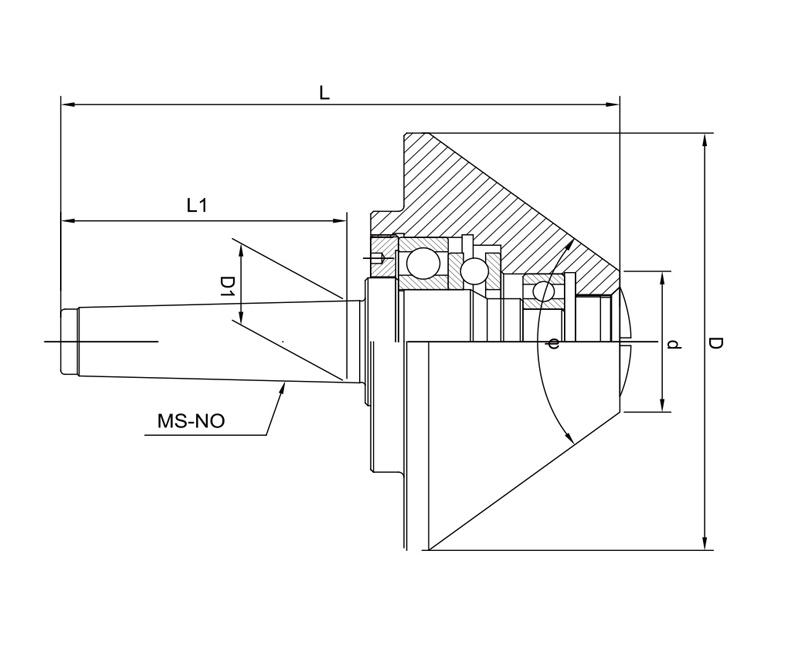

Model	MS.NO	L (φ:mm)	L1 (φ:mm)	D (φ:mm)	D1 (φ:mm)	d (φ:mm)	φ	Accuracy (mm)
DS2x61.9	2	121	64	61.9	17.780	12.7	70°	0.005
DS2x62.9		121		62		12.7	70°	0.005
DS2x80.9		130		80		15	75°	0.005
DS3x85		130		85		15	75°	0.005
DS3x76.2	3	152	81	76.2	23.825	19.05	54.6°	0.005
DS3x76.2		146		76.2		17	70°	0.005
DS3x80		162		80		25	60°	0.005
DS3x80		146		80		15	75°	0.005
DS3x100		148		100		40	60°	0.005
DS3x100		155		100		25	75°	0.005
DS3x110		155		110		25	75°	0.005
DS4x80	4	170	102.5	80	31.267	15	75°	0.005
DS4x110		182		110		25	75°	0.005
DS4x120		190		120		32	75°	0.005
DS4x132		176		132		34	52°	0.005
DS4x160		200		160		54	75°	0.008
DS4x200		218		200		70	75°	0.008
DS5x70	5	205	129.5	70	44.399	20	60°	0.005
DS5x100		206		100		25	75°	0.005
DS5x120		216		120		32	75°	0.005
DS5x140		229		140		40	75°	0.005
DS5x150		238		150		35	75°	0.008
DS5x152.4		242		152.4		35	75°	0.008
DS5x200		245		200		70	75°	0.008
DS5x250		268		250		90	75°	0.01
DS5x300		301		300		106	75°	0.01
DS6x300	6	352	182	300	63.348	106	75°	0.01
