CENTER SERIES-SPECIAL TYPE

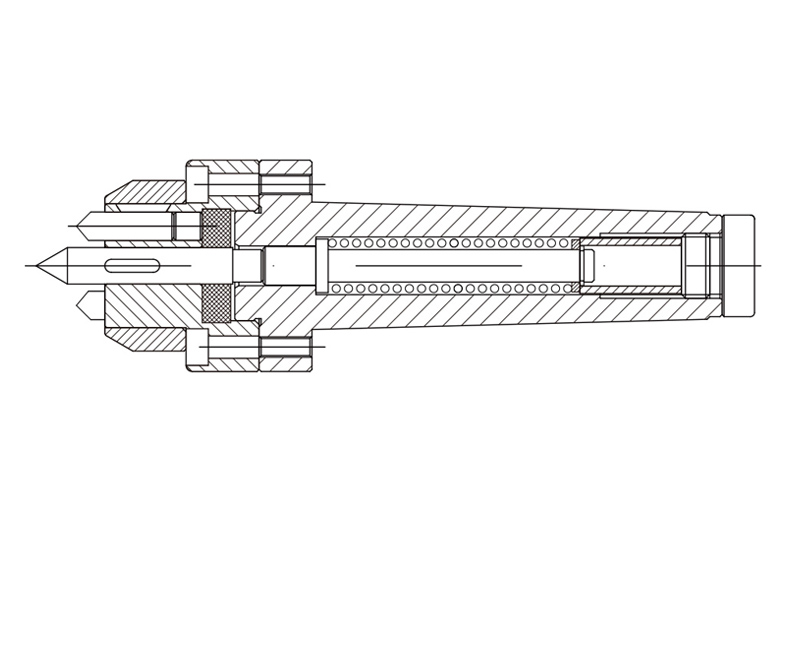

DJ-05002 PRECISION DRIVE CENTER
产品信息
1.The center adopts spindle surface clamping drive.It is applicable to the asperities of workpieces.The center drive can auto adjustment to make workpieces average stress
2.The internal adopts strong rubber and the drive gear adopts alloy steel.It is thus has high performance and service life. easy maintenance
2.The internal adopts strong rubber and the drive gear adopts alloy steel.It is thus has high performance and service life. easy maintenance
| Model | Center shaft size | Duter dia. | Working Range |
|---|---|---|---|
| D-31.MT4 | Φ5 | Φ16 | Φ12-Φ20 |
| D-32.MT4 | Φ9 | Φ25 | Φ18-Φ35 |
| D-33.MT4/MT5 | Φ14 | Φ39 | Φ30-Φ55 |
| D-34.MT4/MT5 | Φ18 | Φ53 | Φ40-Φ70 |
