CENTER SERIES-SPECIAL TYPE
DJ-05008 INTEGRATED DRIVE CENTER
产品信息
1.The center is used for the main shaft to drive the workpiece, and is suitable for the machining of the workpiece with smooth surface.
2.The front end adopts high-speed tool steel driving gears, which can increase the stability of the drive.
3.Driving claw can be replaced according to the size, and it is suitable for the machining of shaft parts of different sizes
2.The front end adopts high-speed tool steel driving gears, which can increase the stability of the drive.
3.Driving claw can be replaced according to the size, and it is suitable for the machining of shaft parts of different sizes
主体

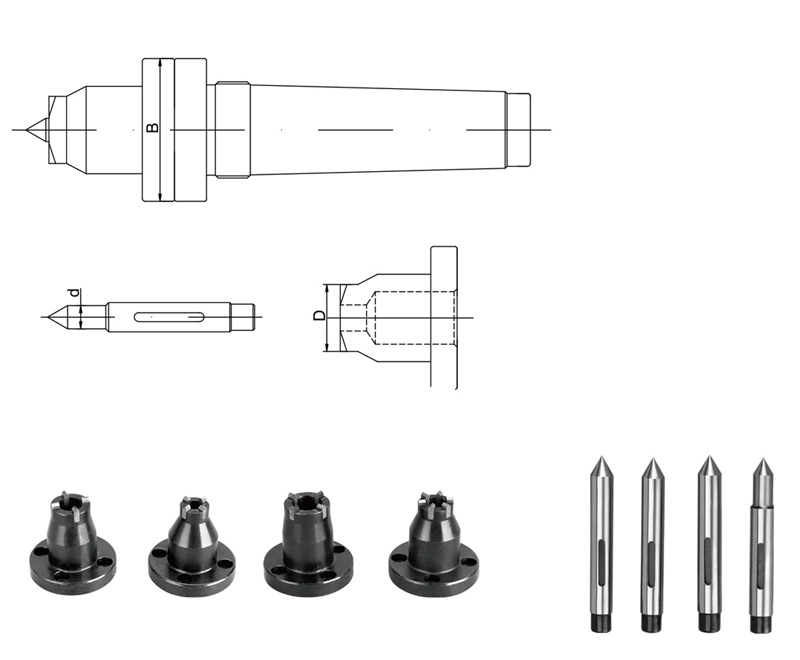

| Model | Allowable length diameter ration of axle | Accuracy | Big end diameter:B |
|---|---|---|---|
| MT3 | ≤16 | 0.015 | 50 |
| MT4 | ≤16 | 0.015 | 50 |
顶尖
| Spec:d | Spec of supplied Jsck catch | Spec:d | Spec of supplied Jsck catch |
|---|---|---|---|
| 4 | 10 | 10 | 19-28 |
| 6 | 12 | 12 | 22-28 |
| 8 | 16 | 18 | 28 |
| 9 | 16-17 | 20 | 28 |
卡爪
| Spec:d | Diameter of processed workpiece | Spec:d | Diameter of processed workpiece |
|---|---|---|---|
| 10 | 10-15 | 22 | 22-27 |
| 12 | 12-17 | 25 | 25-31 |
| 16 | 16-21 | 28 | 28-36 |
