CENTER SERIES-SPECIAL TYPE

DJ-05006|HYDRAULIC DRIVE CENTER

DJ-05006 HYDRAULIC DRIVE CENTER

DJ-05006

产品信息

1.The center adopts the spindle drive workpieces.lt is applicable to the asperities of workpieces. The front-end driver can automatically compensate.
2.The internal adopts three-point hydraulic circulating system.and the drive gear adopts embed high speed tool steel. It is thus has high performance and service life.

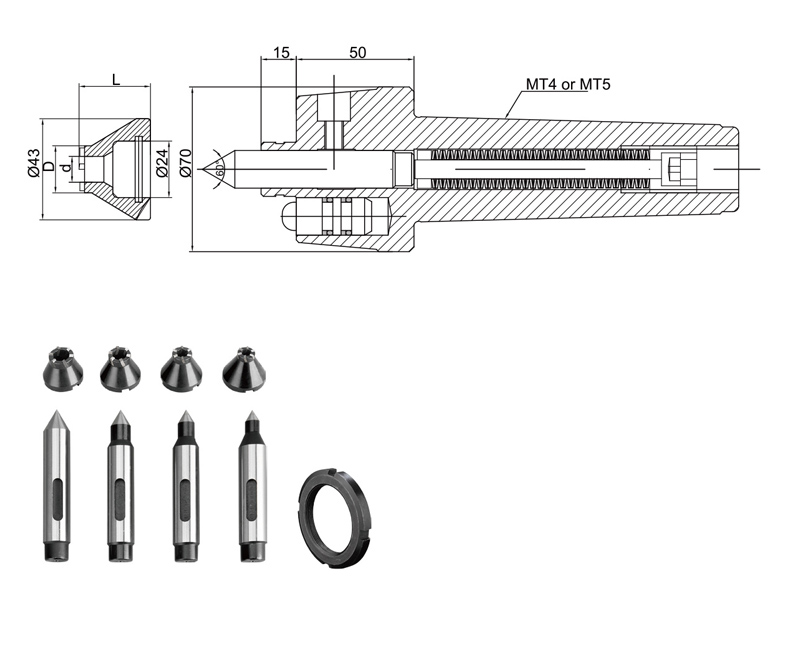

Model D
(φ:mm)
d
(φ:mm)
L
(mm)
D1 17 7 35
D2 20 11 33
D3 23 15 31
D4 26 17 30
D5 32 22 30
