CENTER SERIES-SPECIAL TYPE

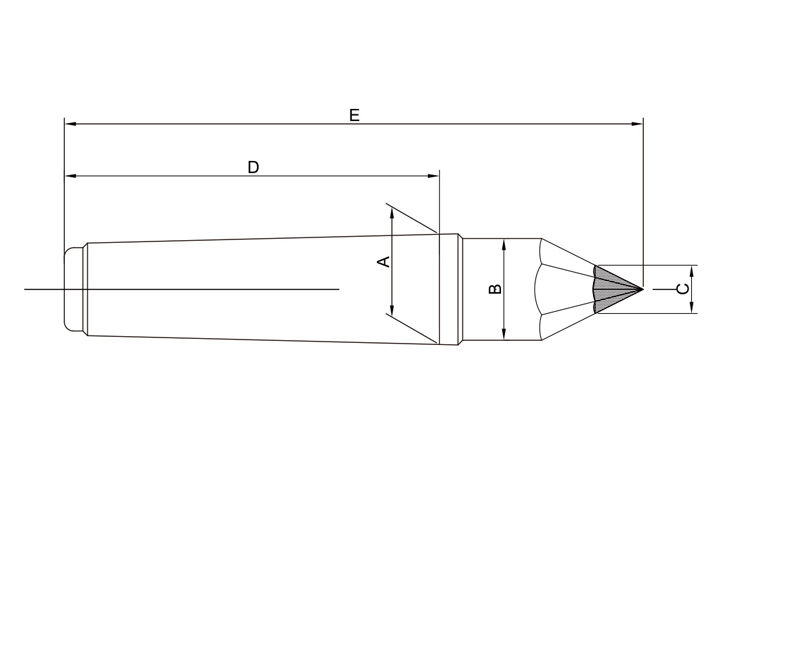

DJ-03018 CARBIDE HEXAGONAL GRINDING CENTER
产品信息
| Model | A (φ:mm) |
B (φ:mm) |
C (φ:mm) |
D (mm) |
E (mm) |
Accuracy (mm) |
|---|---|---|---|---|---|---|
| MT2 | 17.780 | 16 | 8 | 64 | 100 | 0.005 |
| MT3 | 23.825 | 22 | 12 | 81 | 125 | 0.005 |
| MT4 | 31.267 | 29 | 15 | 102.5 | 160 | 0.005 |
| MT5 | 44，399 | 41 | 18 | 129.5 | 200 | 0.005 |
| MT6 | 63.348 | 60 | 24 | 182 | 270 | 0.005 |
