CENTER SERIES-SPECIAL TYPE
DJ-08016 OVERSIZED CARBIDE POINT DEAD CENTER
产品信息
1.With added alloy at the head, the center is applicable to the processing of holes with big benchmarks.

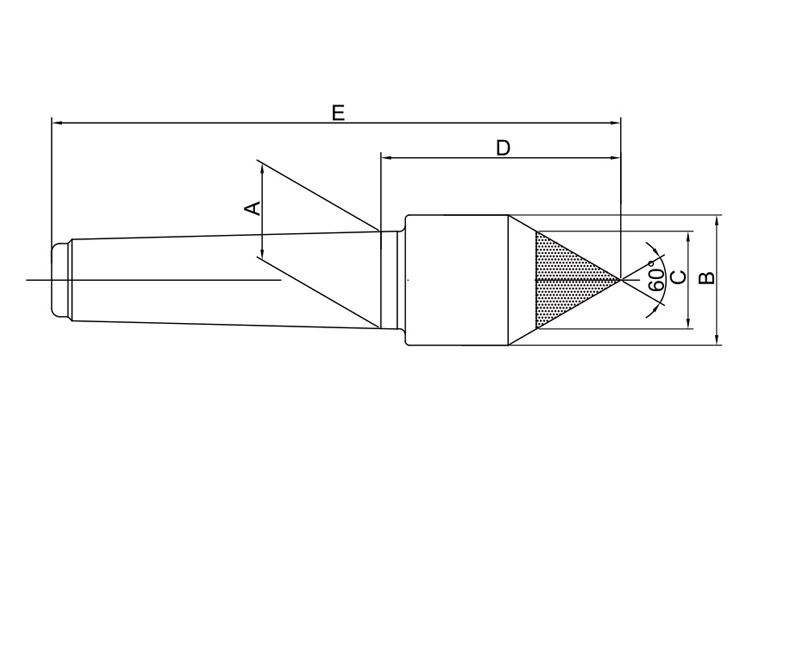

| Model | A (φ:mm) |
B (φ:mm) |
C (φ:mm) |
D (mm) |
E (mm) |
Accuracy (mm) |
|---|---|---|---|---|---|---|
| MT2 | 17.780 | 32 | 24 | 61 | 125 | 0.005 |
| MT3 | 23.825 | 32 | 24 | 59 | 140 | 0.005 |
| MT4 | 31.267 | 44 | 30 | 67.5 | 170 | 0005 |
| MT5 | 44.399 | 46 | 30 | 85.5 | 215 | 0.005 |
