CENTER SERIES-SPECIAL TYPE

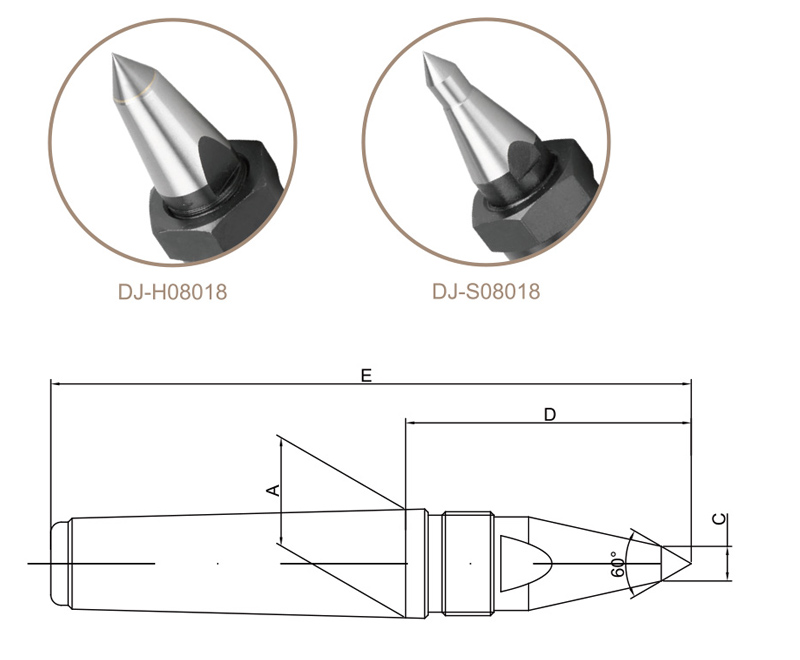

D-08018 CNC THREADED DEAD CENTER/CNC THREADED CARBIDE DEAD CENTER
产品信息
1. With reduced diameter of the head, the center is applicable to the processing of thin shaft or end faces of CNC lathes.
2. The center is made of alloy tool steel and its hardness after being heat treated has high steel performance and high wear resistance.
3. With disassembling thread on the big end of the cone, it is easy to disassemble so as to improve the efficiency.
4. The center head is embedded with hard alloy to improve the wear resistance
2. The center is made of alloy tool steel and its hardness after being heat treated has high steel performance and high wear resistance.
3. With disassembling thread on the big end of the cone, it is easy to disassemble so as to improve the efficiency.
4. The center head is embedded with hard alloy to improve the wear resistance
| Model | A (φ:mm) |
B (φ:mm) |
C (φ:mm) |
D (mm) |
E (mm) |
Accuracy (mm) |
|---|---|---|---|---|---|---|
| MT3 | 23.825 | 8 | 10 | 69 | 150 | 0.005 |
| MT4 | 31.267 | 12 | 15 | 82.5 | 185 | 0.005 |
| MT5 | 44.399 | 15 | 18 | 85.5 | 215 | 0.005 |
