CENTER SERIES-SPECIAL TYPE

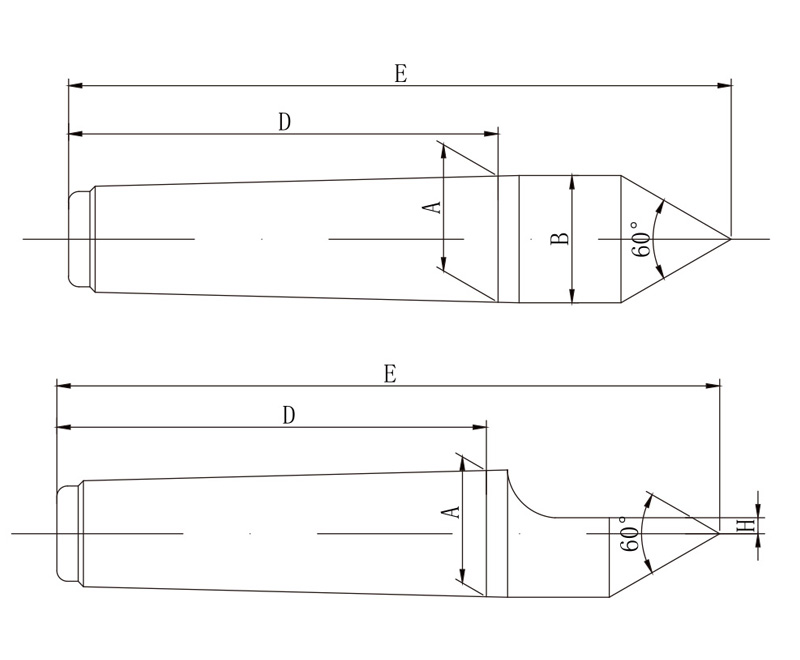

DJ-03020 DEAD CENTER / HALF-NOTCHED CENTER
产品信息
| Model | A (φ:mm) |
B (φ:mm) |
D (φ:mm) |
E (mm) | H (mm) | Accuracy (mm) |
|---|---|---|---|---|---|---|
| MT1 | 12.065 | 12.3 | 53.5 | 80 | 1.5 | 0.005 |
| MT2 | 17.780 | 18.05 | 64 | 100 | 2 | 0.005 |
| MT3 | 23.825 | 24.05 | 81 | 125 | 3 | 0.005 |
| MT4 | 31.267 | 31.6 | 102.5 | 160 | 5 | 0.005 |
| MT5 | 44.399 | 44.8 | 129.5 | 200 | 7 | 0.005 |
| MT6 | 63.348 | 63.8 | 182 | 270 | 10 | 0.005 |
