CENTER SERIES-HEAVY LOAD

DJ-08011|PRECISION HEAVY DUTY LIVE CENTER

DJ-08011 PRECISION HEAVY DUTY LIVE CENTER

DJ-08011

产品信息

1. The center adopts the combination of cylindrical roller shafts, deep groove ball bearings, thrust ball bearings and needle roller bearings.
2. Be suitable for heavy load finish machining of CNC lathe.
3.The spindle is lengthened to the center handle, which can effectively improve the cutting performance and reduce the vibration
4. The head is made of alloy tool steel, and after heat treatment the hardness of it is HRC60°±2°, and it has high rigidity and high wear resistance.
5. The spindle is designed with a retaining ring to prevent the metal cutting powder and cutting fluid from entering the internal of the center
6.The front end is provided with a precise skeleton seal ring to prevent the cutting fluid and dust from entering the internal of the center, thereby prolonging the service life of the center.

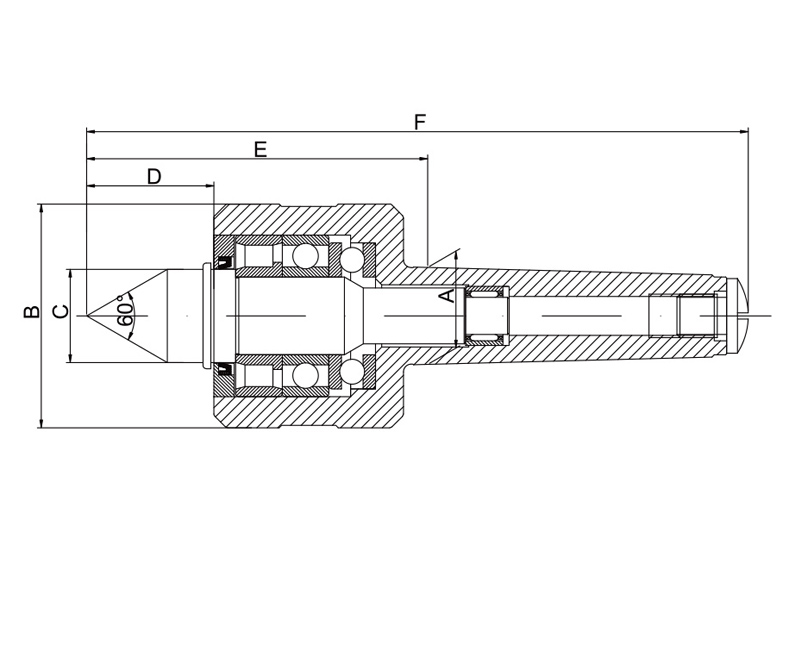

Model A
(φ:mm)
B
(φ:mm)
C
(φ:mm)
D
(mm)
E
(mm)
F
(mm)
Max load
(kg)
Max Speed
(rpm)
Accuracy
(mm)
MT3 23.825 64 26 98 98 179 1000 3000 0.005
MT4 31.267 72 30 110 110 213 1600 2500 0.005
MT5 44.399 84 40 126 126 256 3000 2000 0.008
MT6 63.348 132 64 183 183 365 5000 1200 0.01
