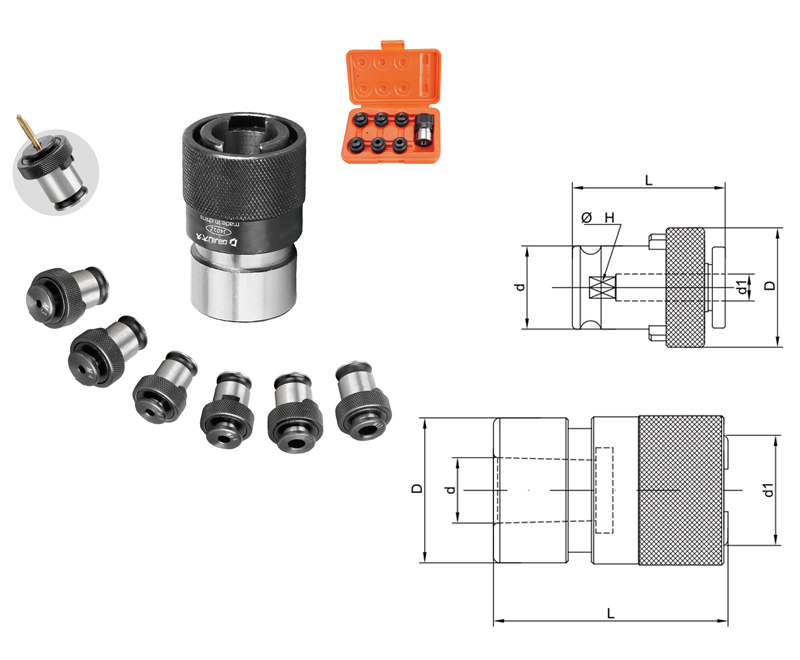

DJ-09022 J40 TAPPING CHUCK
产品信息
| Model | D1 (φ:mm) |
D (φ:mm) |
d (φ:mm) |
L (φ:mm) |
Matched tap socket |
|---|---|---|---|---|---|
J4012 |
Φ34 | Φ12.065 | Φ19 | 49 | M3-M12 |
| Φ15.733 | 55 | ||||
| J4016 | Φ44 | Φ17.780 | Φ25 | 67 | M5-M16 |
J4024 |
Φ54 | Φ17.780 | Φ30 | 69 | M12-M24 |
| Φ21.793 | 77 | ||||
| Φ23.825 | 87 |
| Model | Size | d (φmm) | d1 (φmm) | D (φmm) | L (φmm) | H (φmm) |
|---|---|---|---|---|---|---|
J4012 |
M3 | 19 | 3.15 | 28 | 35 | 2.5 |
| M4 | 4 | 3.15 | ||||
| M5 | 5 | 4 | ||||
| M6-8 | 6.3 | 5 | ||||
| M10 | 8 | 6.3 | ||||
| M12 | 9 | 7.1 | ||||
J4016 |
M5 | 25 | 5 | 38 | 45 | 4 |
| M6-8 | 6.3 | 5 | ||||
| M10 | 8 | 6.3 | ||||
| M12 | 9 | 7.1 | ||||
| M14 | 11.2 | 9 | ||||
| M16 | 12.5 | 10 | ||||
J4024 |
M12 | 30 | 9 | 48 | 56 | 7.1 |
| M14 | 11.2 | 9 | ||||
| M16 | 12.5 | 10 | ||||
| M18-20 | 14 | 11.2 | ||||
| M22 | 16 | 12.5 | ||||
| M24 | 18 | 14 |
