PRODUCTS-CHUCK SERIES
Certified Company ISO 9001-2008

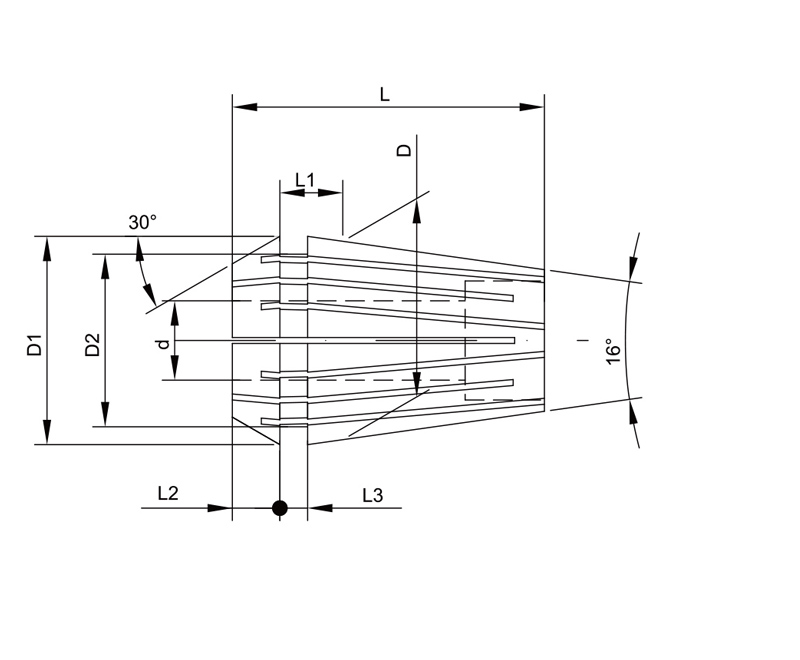

DJ-09052 ER CHUCK
产品信息
| Model | dH7 | D (φ:mm) |
D1 (φ:mm) |
D2 (φ:mm) |
L (φ:mm) |
L1 (φ:mm) |
L2 (φ:mm) |
L3 (φ:mm) |
Flexibility of contraction |
|---|---|---|---|---|---|---|---|---|---|
| ER8 | ≥1.0-5.0 | 8 | 8.5 | 6.5 | 13.5 | 2.7 | 1.5 | 1.2 | 0.5 |
| ER11 | ≥1.0-7.0 | 11 | 11.5 | 9.5 | 18.0 | 3.8 | 2.5 | 2.0 | 0.5 |
| ER16 | ≥1.0-2.0 | 16 | 17 | 13.8 | 27.5 | 6.26 | 4.0 | 2.7 | 0.5 |
| >2.0-10.0 | 1.0 | ||||||||
| ER20 | 1.0-2.5 | 20 | 21 | 17.4 | 31.5 | 6.36 | 4.8 | 2.8 | 0.5 |
| >2.5-13.0 | 1.0 | ||||||||
| ER25 | ≥1.0-2.5 | 25 | 26 | 22.0 | 34.5 | 6.66 | 5.0 | 3.1 | 0.5 |
| >2.5-16.0 | 1.0 | ||||||||
| ER32 | ≥2.0-2.5 | 32 | 33 | 29.2 | 40.0 | 7.16 | 5.5 | 3.6 | 0.5 |
| >3.5-20.0 | 1.0 | ||||||||
| ER40 | ≥3.0-26 | 40 | 41 | 36.2 | 46.0 | 7.66 | 7.0 | 4.1 | 1.0 |
| ER50 | ≥6.0-10.0 | 50 | 52 | 64 | 60.0 | 12.6 | 8.5 | 5.5 | 1.0 |
| >10.0-34.0 | 2.0 |
