DJ-09901|SELF-TIGHTEN CHUCK SYSTEM HEAVY DUTY

DJ-09901 SELF-TIGHTEN CHUCK SYSTEM HEAVY DUTY

DJ-09901

产品信息

1.High precision,and high gripping force,high reliability and stability.
2.Flimsy parts are shaped by quenching.
3.Self-tighting feature automatically increase gripping force proportional to increase torque to prevent tool shank slippage.

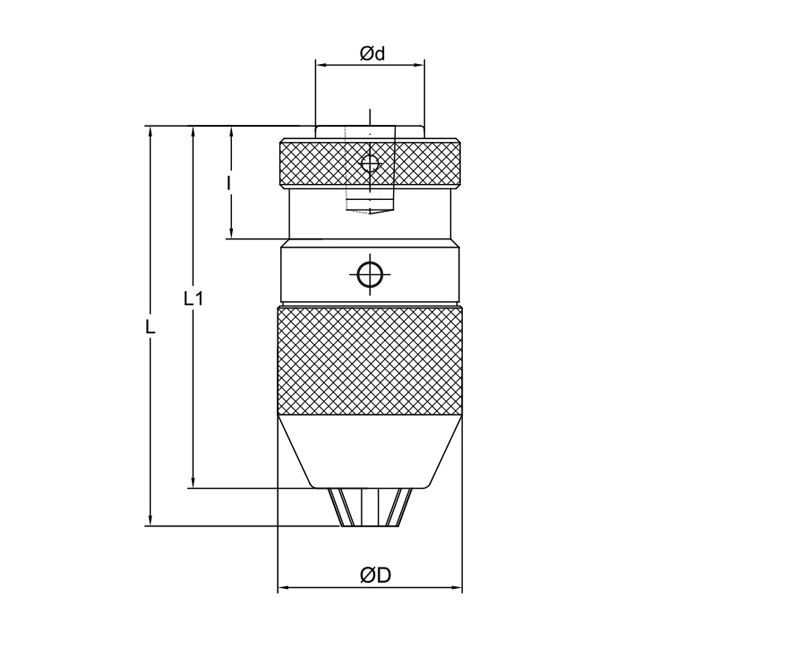

Model	Capacity	Tapping	Taper	d (φ:mm)	I (φ:mm)	D (φ:mm)	L (φ:mm)	L1 (φ:mm)	kg	Check rod Big Small rod		Accuracy M P		力矩 N.M
J0204	0.3-4	J TO	2°49'24.7”	6.350	11.112	29	60.8	55	-	4x45	-	0.05	0.08	1.2
J0204	1/6”-5/32”	J TO	2°49'24.7”	6.350	11.112	29	60.8	55	-	4x45	-	0.05	0.08	1.2
J0106	0.5-6	B10	2°51'26.7”	10.094	14.500	34	70.6	64	0.32	6x65	4x45	0.05	0.10	3
J0206	1/64”-1/4”	JT1	4°24'53.1”	9.754	16.669	34	70.6	64	0.32	6x65	4x45			3
J0108	0.5-8	B12	2°51'26.7”	12.065	18.500	39	80.4	73	0.50	8x80	4x45			4
J0208	1/64”-5/16”	JT2	4°40'11.6”	14.199	22.225	39	80.4	73	0.50	8x80	4x45			4
J0110	1-10	B12	2°51'26.7”	12.065	18.500	44	90.2	82	0.70	9x95	5x60			6
J0210	1/32”-3/8”	JT2	4°40'11.6”	14.199	22.225	44	90.2	82	0.70	9x95	5x60			6
J0113	1-13	B16	2°51'41.0”	15.733	24.000	49	100.6	91	0.96	13x105	6x65			12
J0213	1/32”-1/2”	JT33	3°38'13.4”	15.850	25.400	49	100.6	91	0.96	13x105	6x65			12
J0116	1-16	B18	2”51'41.0”	17.780	32.000	54	112.2	102	1.24	16x110	8x80	0.05	0.10	14
J0216	1/32”-5/8”	JT6	2°58'24.8”	17.170	25.400	54	112.2	102	1.24	16x110	8x80	0.05	0.10	14
J0120	5-20	B22	2°52'31.5”	21.793	40.500	59	124.2	116	1.70	20x120	10x95	0.05	0.10	16
J0220	3/16”-3/4”	JT3	3”3'3”	20.599	30.596	59	124.2	116	1.70	20x120	10x95	0.05	0.10	16
