PRODUCTS-CHUCK SERIES
DJ-09905A CNC SELF-TIGHTEN CHUCK
产品信息
1. High precision morse taper
2.This integrated design makes it impossible for the arbor and the drill chuck to become accidentally separated
3. High precision and high grinding force, high reliability and stability,
4.Flimsy parts are shaped by quenching.
5.Self-tighting feature automatically increase gripping force proportional to increase torque to prevent tool shank slippage.
2.This integrated design makes it impossible for the arbor and the drill chuck to become accidentally separated
3. High precision and high grinding force, high reliability and stability,
4.Flimsy parts are shaped by quenching.
5.Self-tighting feature automatically increase gripping force proportional to increase torque to prevent tool shank slippage.

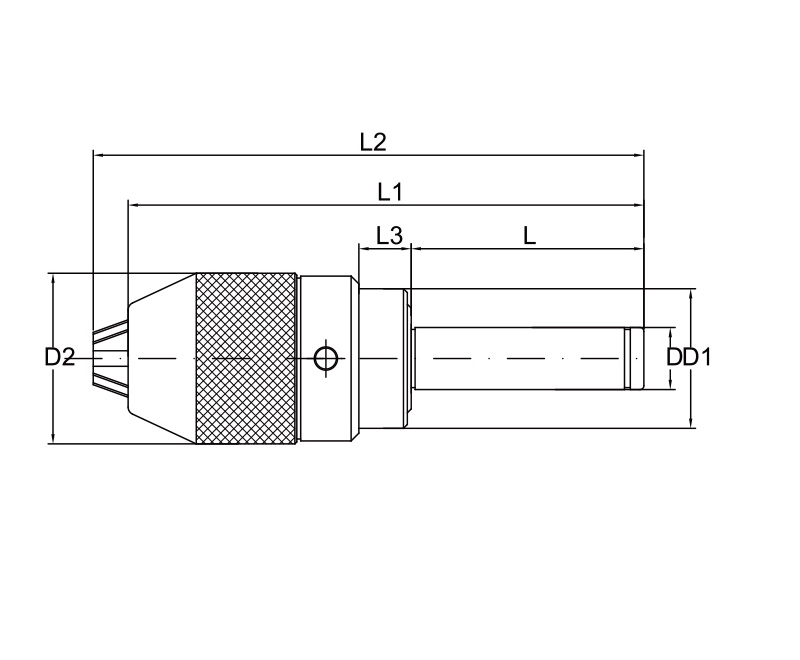

| Model | Capacity (mm) |
Capacity pulgadas | Size | ||||
|---|---|---|---|---|---|---|---|
| D1 (φ:mm) |
L1 (φ:mm) |
L2 (φ:mm) |
L (φ:mm) |
D (φ:mm) |
|||
| C20-13 | 1.0-13 | 1/32-1/2 | 51 | 142 | 154 | 60 | 20 |
| C20-16 | 1.0-16 | 1/32-5/8 | 57 | 153 | 167.5 | 60 | 20 |
| C25-13 | 1.0-13 | 1/32-1/2 | 51 | 162 | 174 | 80 | 25 |
| C25-16 | 1.0-16 | 1/32-5/8 | 57 | 173 | 187.5 | 80 | 25 |
| C32-13 | 1.0-13 | 1/32-1/2 | 51 | 162 | 174 | 80 | 32 |
| C32-16 | 1.0-16 | 1/32-5/8 | 57 | 173 | 187.5 | 80 | 32 |
| C42-13 | 1.0-13 | 1/32-1/2 | 51 | 162 | 174 | 80 | 42 |
| C42-16 | 1.0-16 | 1/32-5/8 | 57 | 173 | 187.5 | 80 | 42 |
| R8-10 | 1.0-10 | 1/32”-3/8” | 43.5 | 161.5 | 170 | 102 | 31.75 |
| R8-13 | 1.0-13 | 1/32-1/2 | 51 | 183.5 | 195 | 102 | 31.75 |
| R8-16 | 1.0-16 | 1/32-5/8 | 57 | 195 | 210 | 102 | 31.75 |
