PRODUCTS-CHUCK SERIES
DJ-09907 CNC SELF-TIGHTEN CHUCK
产品信息
1.High precision BT Arbor.
2.This integrated design makes it impossible for the arbor and the drill chuck to become accidentally separated.
3.High precision,and high gripping force,high reliability and stability.
4.Flimsy parts are shaped by quenching.
5.Self-tighting feature automatically increase gripping force proportional to increase torque to prevent tool shank slippage
2.This integrated design makes it impossible for the arbor and the drill chuck to become accidentally separated.
3.High precision,and high gripping force,high reliability and stability.
4.Flimsy parts are shaped by quenching.
5.Self-tighting feature automatically increase gripping force proportional to increase torque to prevent tool shank slippage

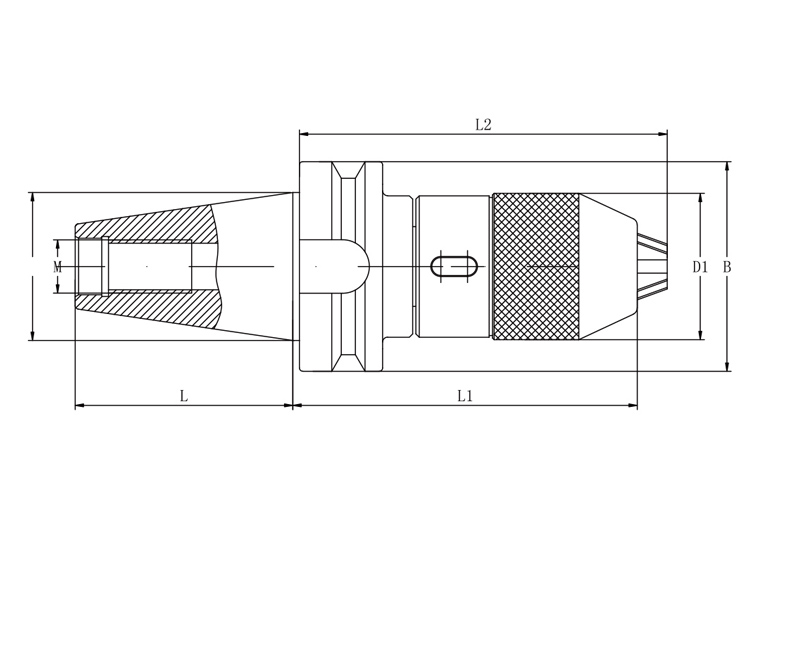

| Model | Capacity | Capacity pulgadas | Size | 连接螺纹 M |
|||||
|---|---|---|---|---|---|---|---|---|---|
| D1 (φ:mm) |
L1 (φ:mm) |
L2 (φ:mm) |
L (φ:mm) |
D (φ:mm) |
|||||
| BT30-8 | 0-8 | 0-5/16” | 30 | 36 | 78 | 86.5 | 48.4 | 31.75 | M12 |
| BT40-8 | 0-8 | 0-5/16” | 40 | 36 | 83 | 91.5 | 65.4 | 44.45 | M16 |
| BT40-10 | 1.0-10 | 1/32”-3/8” | 40 | 43.5 | 92 | 111 | 65.4 | 44.45 | M16 |
| BT40-13 | 1.0-13 | 1/32”-1/2” | 40 | 51 | 101.5 | 113.5 | 65.4 | 44.45 | M16 |
| BT40-16 | 3.0-16 | 1/8”-5/8” | 40 | 57 | 111 | 113.5 | 65.4 | 44.45 | M16 |
| BT45-13 | 1.0-13 | 1/32”-1/2” | 45 | 51 | 107.5 | 119.5 | 82.8 | 57.15 | M20 |
| BT50-13 | 1.0-13 | 1/32”-1/2” | 50 | 51 | 112.5 | 124.5 | 101.8 | 69.85 | M24 |
| BT50-16 | 3.0-16 | 1/8”-5/8” | 50 | 57 | 122 | 136 | 101.8 | 69.85 | M24 |
