DJ-09902|SELF-TIGHTEN CHUCK SYSTEM LIGHT DUTY

DJ-09902 SELF-TIGHTEN CHUCK SYSTEM LIGHT DUTY

DJ-09902

产品信息

1.High precision,and high gripping force,high reliability and stability.
2.Flimsy parts are shaped by quenching
3.Self-tighting feature automatically incease gripping force proportional to increase torque to prevent tool shank slippage.

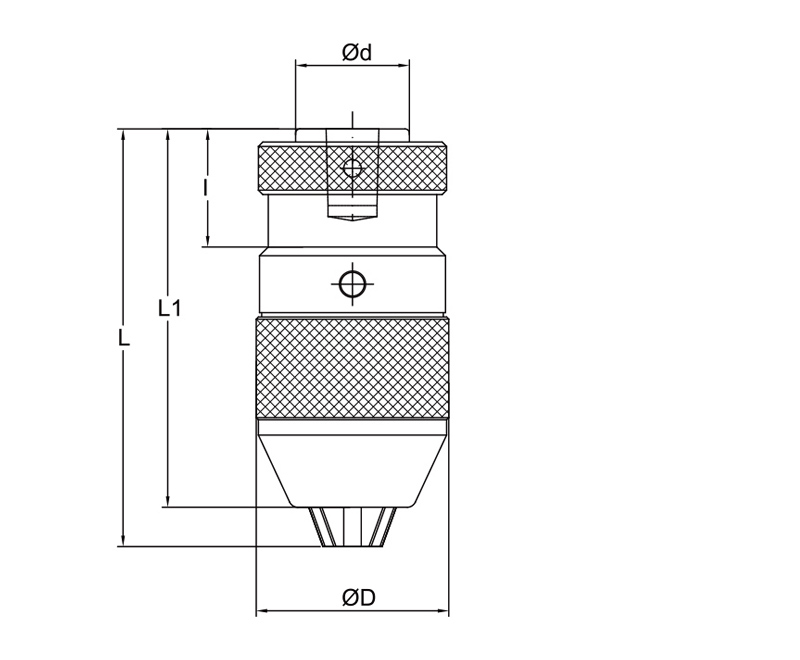

Model	Capacity	Tapping	Taper	d (mm)	I (mm)	D (mm)	L (φ:mm)	L1 (φ:mm)	kg	Check rod		Accuracy(mm)	力矩N.M
JQ0106	0.5-6	B10	2°51'26.7”	10.094	14.500	34	71.2	61.4	0.32	6x65	4x45	0.20	3
JQ0206	1/64”-1/4”	JT1	4°24'53.1”	9.754	16.669	34	71.2	61.4	0.32	6x65	4x45	0.20	3
JQ0108	0.5-8	B12	2°51'26.7”	12.065	18.500	34	71.2	61.4	0.32	8x80	4x45	0.20	4
JQ0208	1/64”-5/16”	JT2	4°40'11.6”	14.199	22.225	34	71.2	61.4	0.32	8x80	4x45		4
JQ0110	1-10	B12	2°51'41.0”	12.065	18.500	36	78	70	0.70	10x95	5x60		6
JQ0210	1/32”-3/8”	JT2	4°38'13.4”	14.199	22.225	36	78	70	0.70	10x95	5x60		6
JQ0113	1-13	B16	2°51'41.0”	15.733	24.000	49	94.5	85.2	0.96	13x105	6x65		12
JQ0213	1/32”-1/2”	JT33	3°38'13.4”	15.850	25.400	44	94.5	85.2	0.96	13x105	6x65		12
JQ0116	1-16	B18	2°51'41.0”	17.780	32.000	54	103	93	1.24	16x110	8x80	0.20	14
JQ0216	1/32”-5/8”	JT6	2°58'24.8”	17.170	25.400	50.5	116	102	1.24	16x110	8x80	0.20	14
JQ0120	5-20	B22	2°52'31.5”	21.793	40.500	59	124.2	116	1.70	20x120	10x95	0.20	16
JQ0220	3/16”-3/4”	JT3	3°3'3”	20.599	30.596		124.2	116	1.70	20x120	10x95	0.20	16
