PRODUCTS-CHUCK SERIES

DJ-09801A|KEY TYPE CHUCK HEAVY DUTY

DJ-09801A KEY TYPE CHUCK HEAVY DUTY

DJ-09801A

产品信息

1.high precision threaded and tapered tightly mounts on tools.
2.Sleeves, key hole and key are shaped by quenching.
3.Jaws are specifically engineered for tight tolerance production drilling.
4.Sleeves teach and key holes are shaped by cold pressing.
5.Super precision and durable.
THREAD MOUNT: UNF, METRIC

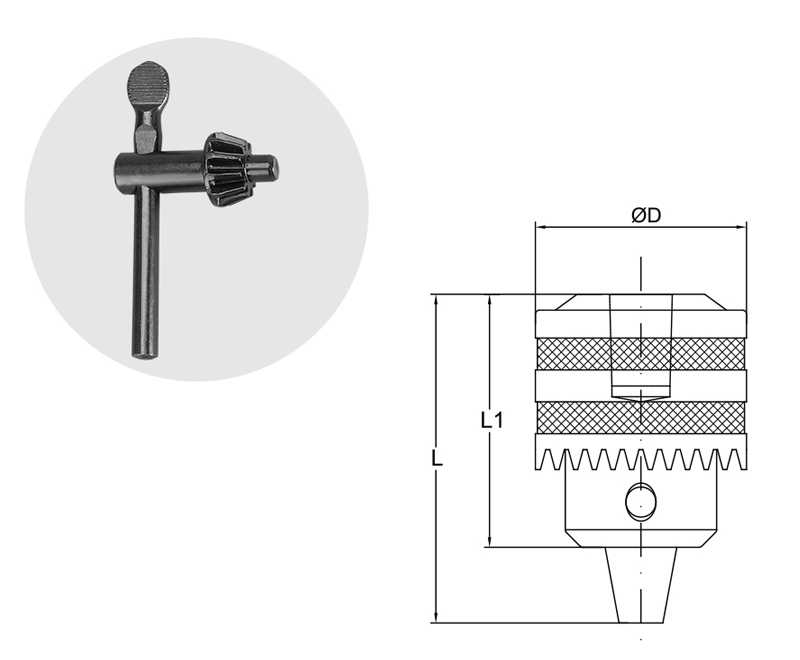

Model Capacity Capacity pulgadas Mount D
(φ:mm)		 L1
(φ:mm)		 L
(φ:mm)
J3110M 1.0-10 1/32-3/8 3/8-24UNF 43.4 54 69.7
J3110M 1.0-10 1/32-3/8 1/2-20UNF 43.4 54 69.7
J3113M 1.0-13 1/32-1/2 1/2-20UNF 53.2 67 86

MORSE TAPER MOUNT
型号 夹持范围 Capacity pulgadas 连接尺寸 D (φmm) L1 (φmm) L (φmm)
J2110H 1.0-10 1/32-3/8 B12 43.4 54 69.7
J2113H 1.0-13 1/32-1/2 B16 53.2 67 86
J2516H 3.0-16 1/8-5/8 B16 53.2 67 86
J2516H 3.0-16 1/8-5/8 B18 53.2 67 86
J2116H 1.0-16 1/32-5/8 B16 57 75 93
J2116H 1.0-16 1/32-5/8 B18 57 75 93
J2120H 5.0-20 3/16-3/4 B22 65.3 82 110

JACOBS TAPER MOUNT
型号 夹持范围 Capacity pulgadas 连接尺寸 D (φmm) L1 (φmm) L (φmm)
J2210H 1.0-10 1/32-3/8 JT2 43.4 54 69.7
J2213H 1.0-13 1/32-1/2 JT33 53.2 67 86
J2213H 1.0-13 1/32-1/2 JT6 53.2 67 86
J2616H 3.0-16 1/8-5/8 JT3 53.2 67 86
J2616H 3.0-16 1/8-5/8 JT33 53.2 67 86
J2616H 1.0-16 1/32-5/8 JT6 53.2 67 86
J2216H 1.0-16 1/32-5/8 JT3 57 75 93
J2220 5.0-20 3/16-3/4 JT3 65.3 82 110
