DJ-15008|K72-FOUR-JAW INDEPENDENT CHUCKS

DJ-15008 K72-FOUR-JAW INDEPENDENT CHUCKS

DJ-15008

产品信息

Application: Recommended for processing of non-ferrous metals, non-metals like plastics and so on
Features:
1. High precision short cylindrical center mounting
2. Flimsy parts are specifically engineered by quenching, for greater durability and extended life.
3. High precision and high grinding force, high reliability and stability,
4.Adjusted independently to center, suitable for processing special with superior gripping force

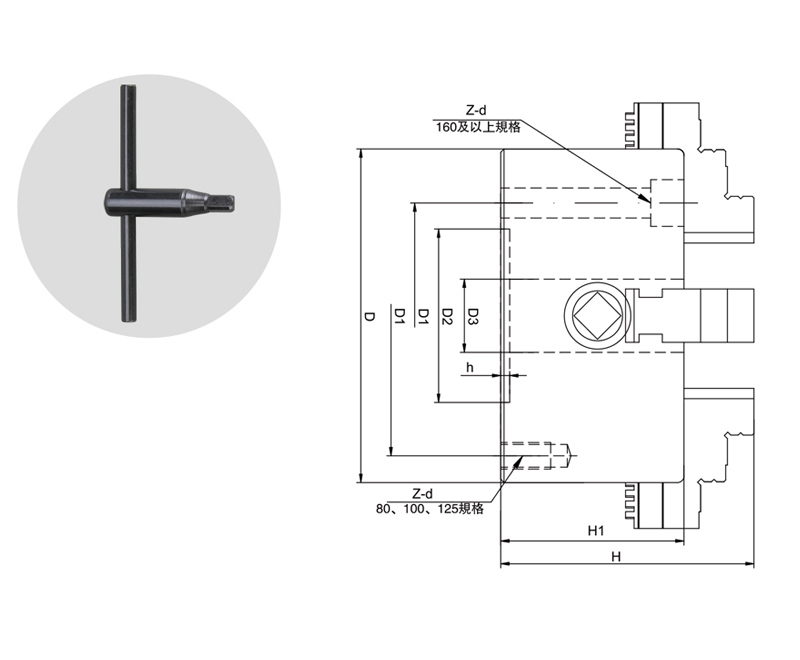

Model D (mm) D1 (mm) D2 (mm) D3 (mm) H (mm) H1 (mm) h (mm) z-d (mm) Max.input torque Max.speed
80 80 66 55 22 56 42 3.5 4-M6 25 4000
100 100 84 72 25 54 54 3.5 4-M8 30 3500
125 125 108 95 30 78 56 4.5 4-M8 50 3000
160 160 95 65 45 93 75 5 4-M10 70 2500
200 200 112 80 56 107 80 6 4-M10 100 2000
250 250 130 110 75 120 90 6 4-M12 150 1600
300 300 130 152 75 134 90 6 4-M12 180 1200
320 320 165 140 95 134 90 6 4-M16 200 1200
350 350 168 130 95 134 90 6 4-M16 250 1200
400 400 185 160 125 143 95 8 4-M16 280 1000
450 450 205 180 140 147 100 8 4-M16 300 900
500 500 236 200 160 161 106 8 4-M20 350 800
630 630 258 220 180 180 118 10 4-M20 400 600
800 800 300 250 210 202 132 12 8-M20 500 500
1000 1000 370 320 260 230 150 15 8-M20 600 400
