DJ-237 NON-THRU-HOLE ROTATING AIR CYLINDER
产品信息
1. The cylinder use high-quality aluminum alloy,Light weight.
2. Piston area is large,can output greater pressure.
3. Use imported bearings and seals that can work at a high speed environment.
2. Piston area is large,can output greater pressure.
3. Use imported bearings and seals that can work at a high speed environment.

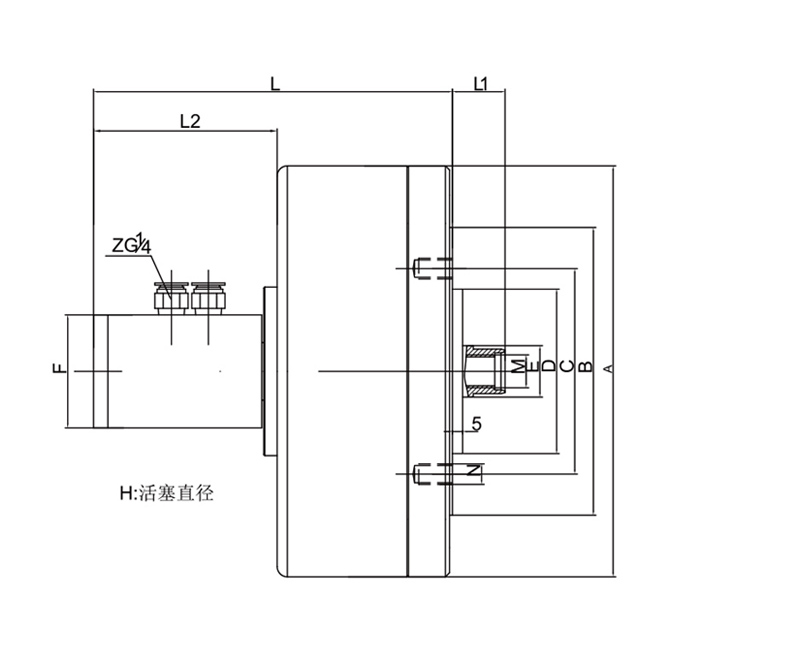

| Model | H (φ:mm) | A (φ:mm) | B (φ:mm) | C (φ:mm) | D (mm) | E (mm) | F (mm) | L1 (φ:mm) | L2 (φ:mm) | M | N |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 237-130 | 130 | 160 | 120 | 90 | 65 | 25 | 50 | 30-45 | 85 | M16X30 | 6-M8X6 |
| 237-170 | 170 | 200 | 140 | 100 | 80 | 25 | 55 | 20-40 | 90 | M16X30 | 6-M10X10 |
| 237-120 | 220 | 255 | 171 | 130 | 110 | 30 | 65 | 20-50 | 95 | M20X35 | 6-M12X20 |
| Size | Piston effective area | Piston stroke | Max.Speed/min | Max.acting pressure | |
|---|---|---|---|---|---|
| Extend | Retract | ||||
| 237-130 | 131 | 125 | 15 | 4500 | 0.8(8) |
| 237-170 | 225 | 219 | 20 | 4500 | |
| 237-220 | 378 | 369 | 25 | 3500 | |
