PRODUCTS > DRILL CHUCK ARBORS SERIES - Dajiu Mechanical Accessories Co.,Ltd.

产品信息

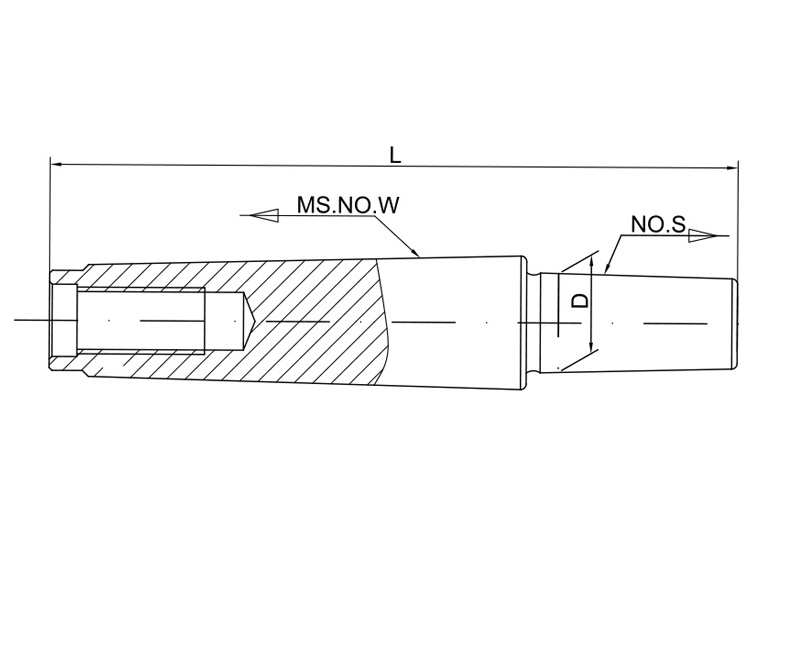

Model	d (φ:mm)	L (φ:mm)	Model	d (φ:mm)	L (φ:mm)	Model	d (φ:mm)	L (φ:mm)
MS2W-J0	6.350	83	MS3W-J4	28.550	131	MS4W-B18	21.793	158
MS2W-J1	9.754	88	MS3W-J33	15.850	114	MS5W-J2	14.199	161
MS2W-J2	14.199	94	MS3W-B10	10.094	107	MS5W-J3	20.599	170
MS2W-J3	20.599	103	MS3W-B12	12.065	111	MS5W-J4	28.550	181
MS2W-J6	17.170	97	MS3W-B16	15.733	118	MS5W-J5	35.890	186
MS ZW-J 33	15.850	97	MS3W-B18	17.780	126	MS5W-J6	17.170	164
M52W-B10	10.094	90	MS4W-J2	14.199	134	MS5W-J33	15.850	164
MS2W-B12	12.065	94	MS4W-J3	20.599	143	MS5W-B16	15.733	168
MS2W-B16	15.733	101	MS4W-J4	28.550	154	MS5W-B18	17.780	176
M52W-B18	17.780	109	MS4W-J6	17.170	137	MS5W-B22	21.793	185
MS3W-J1	9.754	105	MS4W-J33	15.850	137	MS5W-B24	21.793	195
MS3W-J2	14.199	111	MS4W-B16	15.733	141
MS3W-J3	20.599	120	MS4W-B18	17.780	149
