PRODUCTS-DRILL CHUCK ARBORS SERIES

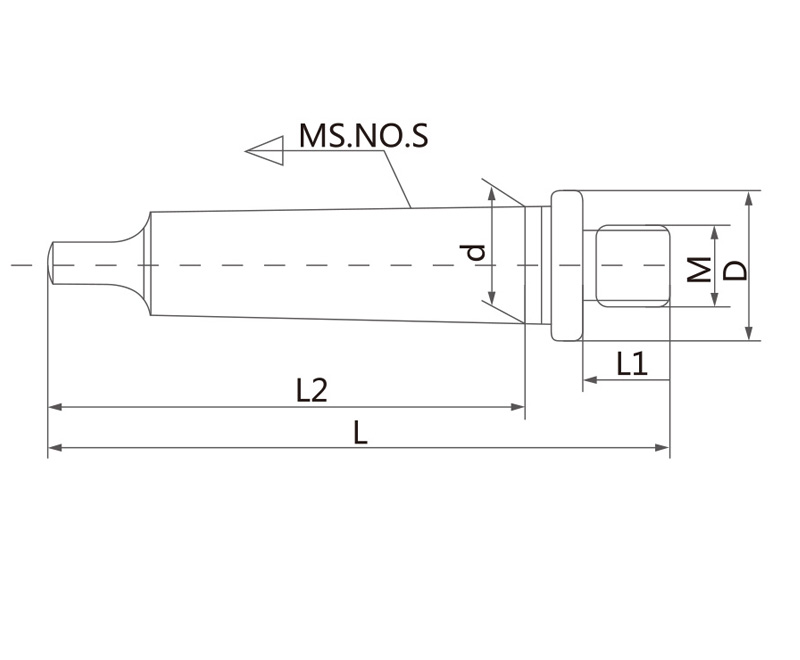

DJ-01016 THREAD DRILL CHUCK ARBORS WITH TANG
产品信息
| Model | MS.NO.S | L (mm) |
L1 (mm) |
L2 (mm) |
D (mm) |
d (mm) |
M |
|---|---|---|---|---|---|---|---|
| MS2-M10×1 | MS2 | 97 | 13.5 | 75 | 24 | 17.78 | M10×1-6H |
| MS 2-3/8”-24UNF | 97 | 13.5 | 24 | 3/8”-24UNF-2A | |||
| MS2-M12x1.25 | 100 | 15.5 | 24 | M12x1.25-6H | |||
| MS 2-1/2”-20UNF | 100 | 15.5 | 24 | 1/2”-20UNF-2A | |||
| MS2-M16x1.5 | 103 | 17.5 | 29 | M16×1.5-6H | |||
| MS 2-5/8”-16UNF | 103 | 17.5 | 29 | 5/8”-16UNF-2A | |||
| MS 2-5/8”-20UNF | 103 | 17.5 | 29 | 5/8-20UNF-2A | |||
| MS3-M10×1 | 116 | 13.5 | 24 | M10×1-6H | |||
| MS3-3/8”-24 | MS3 | 116 | 13.5 | 94 | 24 | 23.825 | 3/8”-24UNF-2A |
| MS3-M12x1.25 | 119 | 15.5 | 27 | M12x1.25-6H | |||
| MS 3-1/2”-20UNF | 119 | 15.5 | 27 | 1/2”-20UNF-2A | |||
| MS3-M16×1.5 | 122 | 17.5 | 29 | M16×1.5-6H | |||
| MS 3-5/8”-16UNF | 122 | 17.5 | 29 | 5/8”-16UNF-2A |
